SPEAKERS AND SUBS

Separate subwoofer speakers for different purposes, supplied complete with stands and necessary wiring.

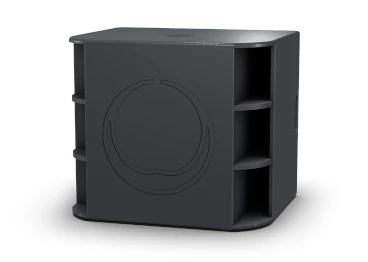

Powered bandpass subwoofer with 18" driver and 2,200-watt Class-D power amp
Sophisticated DSP protects again over-excursion, overheating, and clipping
Left and right stereo inputs and outputs make it easy to connect two main speakers for mids and highs
LF boost with variable frequency helps you fine-tune the bass response to best suit your audio
Birch plywood construction is strong, relatively lightweight, and helps reduce resonance for tighter bass
Built-in heavy duty wheels make it easy to transport and set up

With built-in 1200 W Class D power amplifier
Maximum level: 134 dB
Frequency range: 54 - 19000 Hz (+/- 10 dB)
Connector panel with 1x XLR/6.3 mm jack combo input, 1x Ethernet In, 1x XLR Thru, 1x XLR DSP Out
Weight: 27.6 kg

Max SPL peak: 135 dB half space (@ 10% THD)
Frequency response +/- 3 dB: 65 Hz – 18 kHz
Frequency response -10 dB: 58 Hz – 18 kHz
Power Rating: 1200 W
Amplifier: Class D - bi-amped
Active protection circuits: Under-voltage, thermal, short circuit, over-current protection, subsonic filter, look ahead temperature control, peak, RMS and multiband limiters

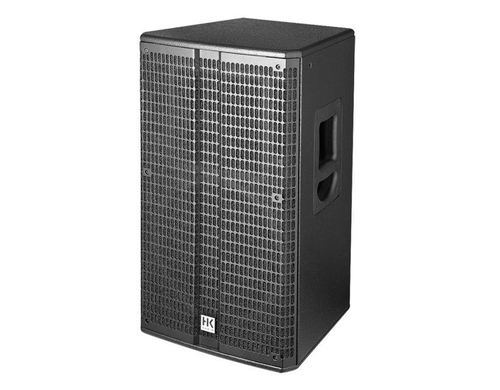

Low/Mid Speaker: 1x 12"
HF Driver: 1"
Horn characteristics: 90° x 55° CD horn
Cut-off Frequency active: 2.3 kHz FIR X-Over with 72 dB/oct.
Connections: 2x XLR Combo In bal., 1x Stereo RCA In, 2 x XLR Thru bal., 1x XLR Mix Out
Input Sensitivity: +4 dBu @ Gain center-notched
Sensitivity switch: Line/Mic Input A
Equalizer: 2 EQ switches: Bass Boost/Flat & Flat/Contour
Pole mount: HK Audio DuoTilt 3/7
Rigging points: 4x M8
Handles: 2x HK Audio MultiGrip
Enclosure: 16 mm MDF
Grille: 2 mm metal grille backed with black acoustic foam
Finish: Acrylic enamel, black
Optional accessories: Cover, Stereo Pole Add-on M20, Speaker Stand Add-on, Tilt bracket (TB-N, TB-NQ), Attachment point (AP-8), Tilt-Unit
Dimensions (WxHxD): 36 x 66 x 36,7 cm
Weight: 21,5 kg
